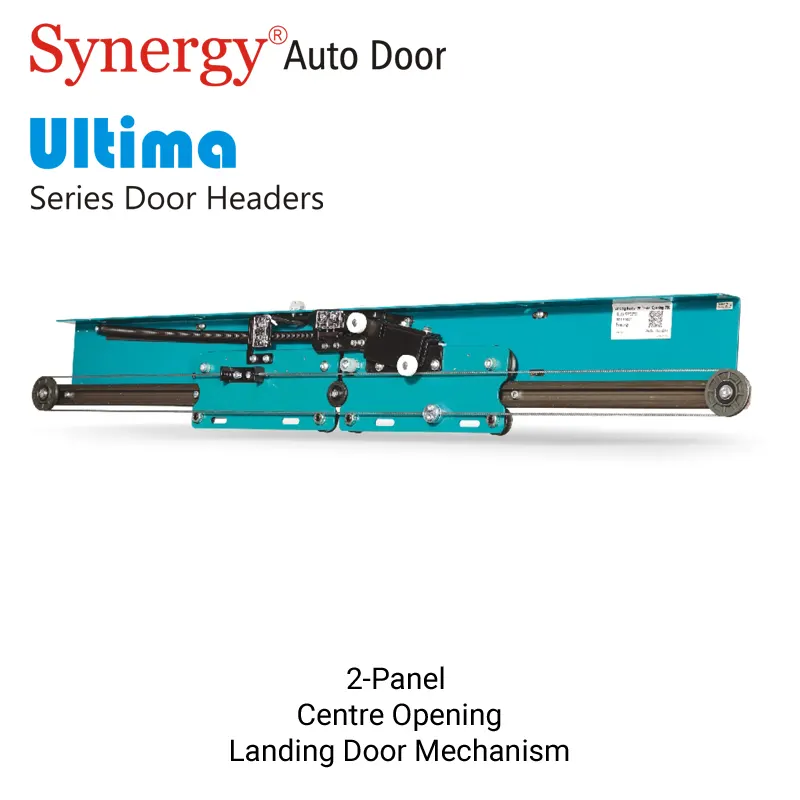

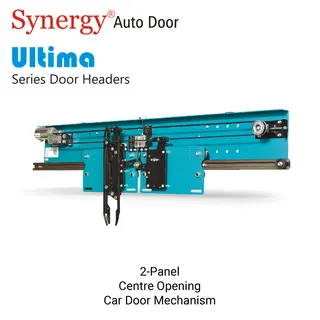

2-Panel Centre Opening
Two panels that part symmetrically from the centre. Available for openings from 600 to 1400 mm. Max. operator width: (2x Clear Opening) + 100 mm.
Salient Features
- Rugged Design with reduced overall Dimensions.
- Belt driven Car Header for silent operation.
- Wider Belt size for giving higher operating torque.
- Hard Anodized Aluminium Track for quiet operation.
- Dynamically Auto Learning for variable door weight & size.
- Spped control of Skate–Coupler gives noiseless opening / closing.
- Dedicated VVVF gives flexibility of programmable parameters to cater user choice of door operation.
- Continuously monitors operating Torque to give safe operation even in failure of photosensor.
- Wide input power supply range gives trouble-free operation in power fluctuation.
- Long life door contacts.
- Adjustable idle pulley with spring tension.

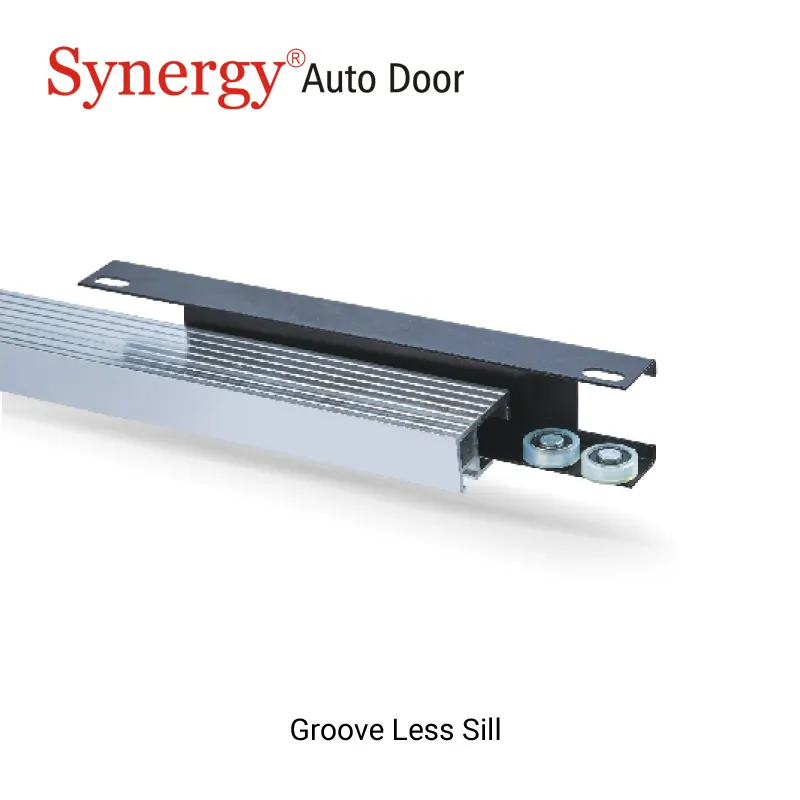

- Groove less Bottom Sill Design to prevent dirt entry and giving attractive look.

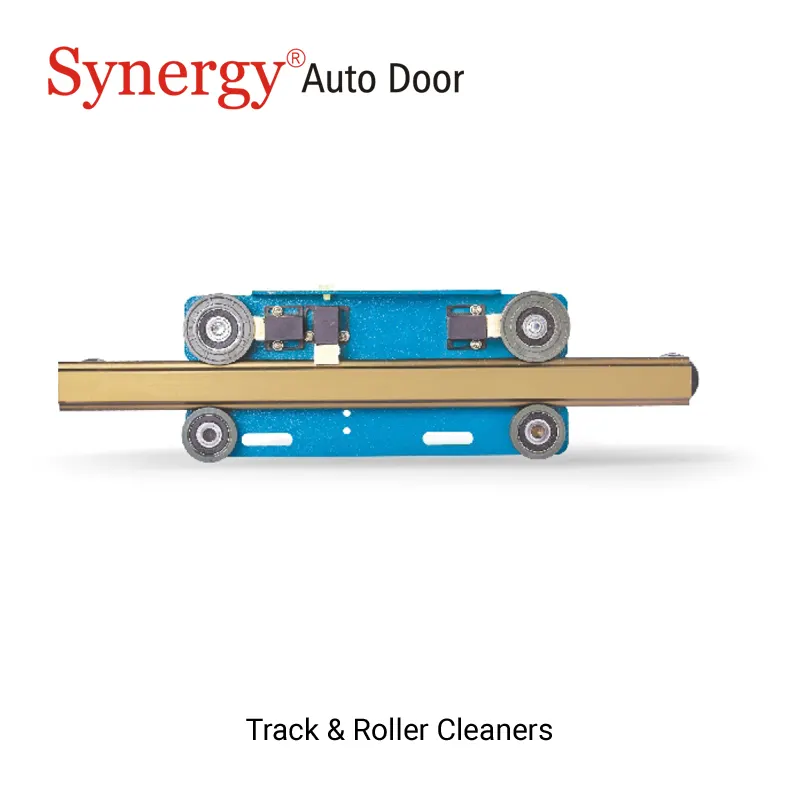

- Built in track cleaners & Roller cleaners for long time noiseless operation.
- Easy installation & faster debugging.
- Field configurable VVVF to interface with various type of main controller panels.
Models and specifications
Available Option
| Type | Available for opening (mm) | Max. Operator width (mm) |
|---|---|---|
| 2 Panel Centre opening | 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1300, 1400 | (2* Clear Opening) + 100 |
