Automatic Door Controller

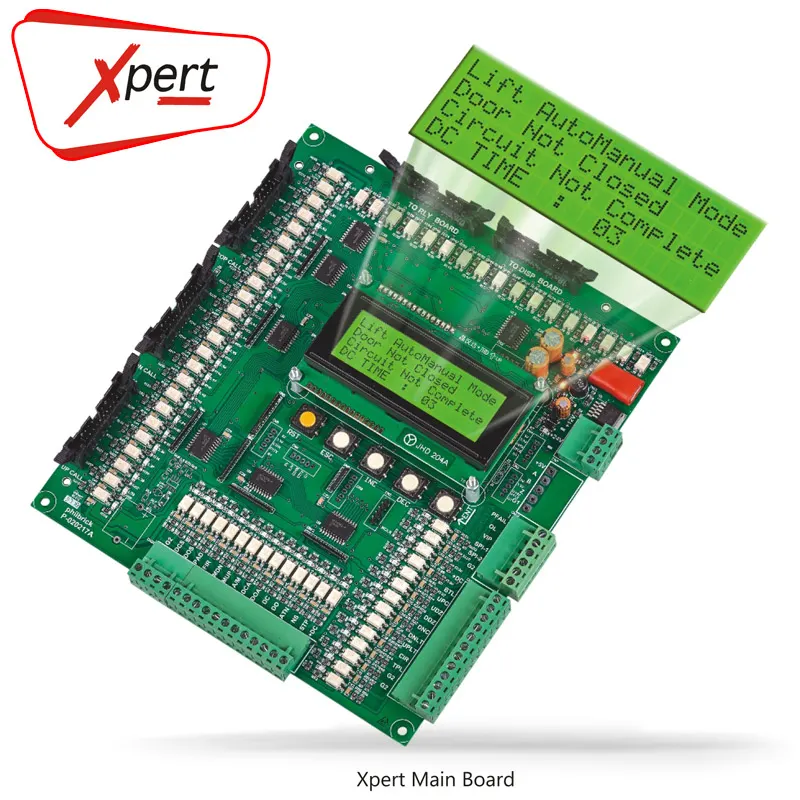

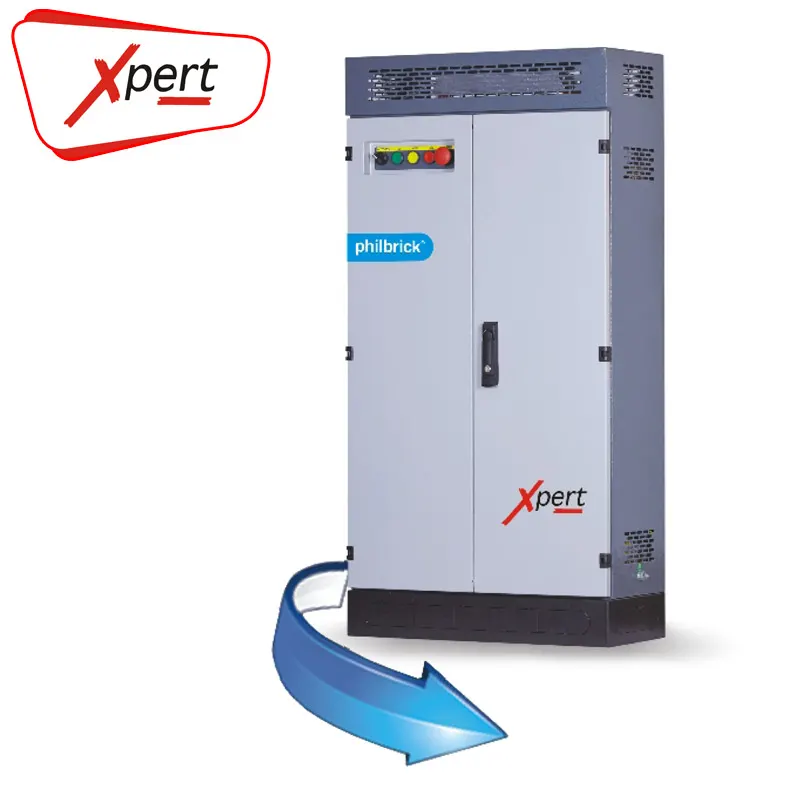

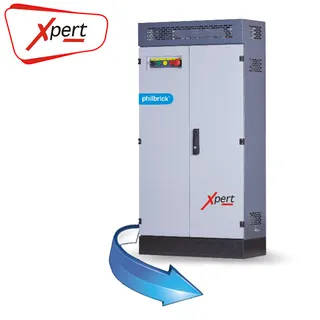

Xpert Main Board based Auto Door V3F Type Control Panel available in 8, 12 and 16 landing floor configurations with Full Collective Logic. Options include customized MRL enclosure, ARD functionality and control panel for Synchronous Motor (Gearless Machine).
Salient Features
- 16 Bit/ 32 Bit RISC microprocessor-based High Speed clocked design which enhance the processing speed for better elevator control.
- Multi Functional keypad with LCD 20 * 4 line display.
- Programmable configuration & Functionality makes flexible controlling.
- Programmable Number of Floors, Floor Designation like B, P, C, L-1, -2, etc, Fireman floor, Home Landing Floor, Door Timings, Front & Rear Door Operation etc.
- Non Stop, VIP Mode & HALT Functionality.
- Password protected trip setting.
- Self Diagnostic/ Debugging Mode for Onsite troubleshooting.
- Auto FAN/ LIGHT functionality to save energy.
- Intelligent electronics STOP function.
- Auto/ Attendant Mode.
- Audio Buzzer O/P for Open Door condition in Manual Door.
- Call Buzzer O/P for Landing Floor Call prompting.
- Opto Coupler based Galvanic Isolation for all Inputs & Outputs.
- Separate LED Indication for all Inputs & Outputs.
- Hardware & Digital Filtering in all the input to suppress effects of Electrical Noise.
- PTC protected all the Digital I/O to avoid failure due to field faults.
- Solid State Display Driver with Resettable Fuse protection.
- Faster learning & simple maintenance.
Models and specifications
| Application | Model | Description | Options |
|---|---|---|---|

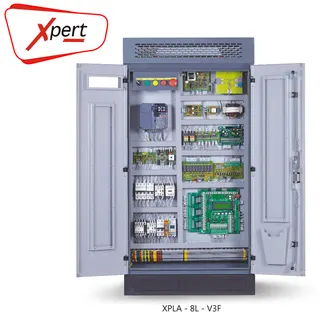

| Xpert Main Board Based Auto Door V3F Type Control Panel | XPLA-8L-V3F | 8 Landing Floors Full Collective Logic |
|
| XPLA-12L-V3F | 12 Landing Floors Down Collective Logic | ||
| XPLA-16L-V3F | 16 Landing Floors Full Collective Logic |
