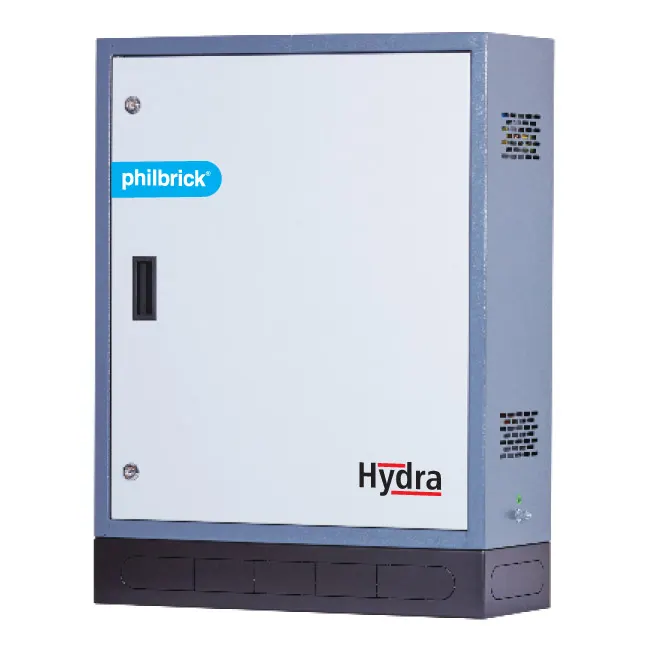

Hydraulic Controller
Xpert and Elevat+ Main Board based Hydraulic Lift Control Panels for up to 8 landing floors, available for Automatic and Manual Door configurations. Options include DOL/Star-Delta Main Pump Starter, MRL application, Phase Sequence Corrector and Front & Rear Door operation.
Salient Features
- Suitable for Hydraulic LIFT with DOL Delta / Wye-Delta Starter for pump.
- 4-Nos. Relay O/P to control 2-speed operation.
- Supports Simple Gate Lock Contact & Pre Gate Lock Configuration for manually operated door LIFT.
- Automatic Rescue Functionality.
- Available for Automatic Door LIFT.
- Auto Releveling functionality.
- Electronics Single Phasing/ Reverse Phasing preventer.
- Speed Up to 0.5 m/s for open-loop.
- Available Up to 30 .0 H.P.
Models and specifications
| Application | Model | Description | Options |
|---|---|---|---|

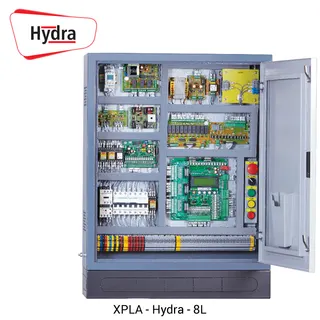

| Xpert Main Board Based Auto Door Hydraulic Lift Control Panel | XPLA Hydra 8L | Up to 8 landing floors for Automatic Door |
|
| Elevate + Main Board Based Manual Door Hydraulic Lift Control Panel | EPM Hydra 8L | Up to 8 landing floors for Manual Door |
