Manual Door Controller
Available in V3F Drive and Single Speed variants with Elevat+ and Xpert Main Board options. V3F panels in 8 to 16 landing configurations with Down/Full Collective Logic. Options include customized MRL enclosure, ARD functionality, Phase Sequence Corrector and Synchronous Motor control.

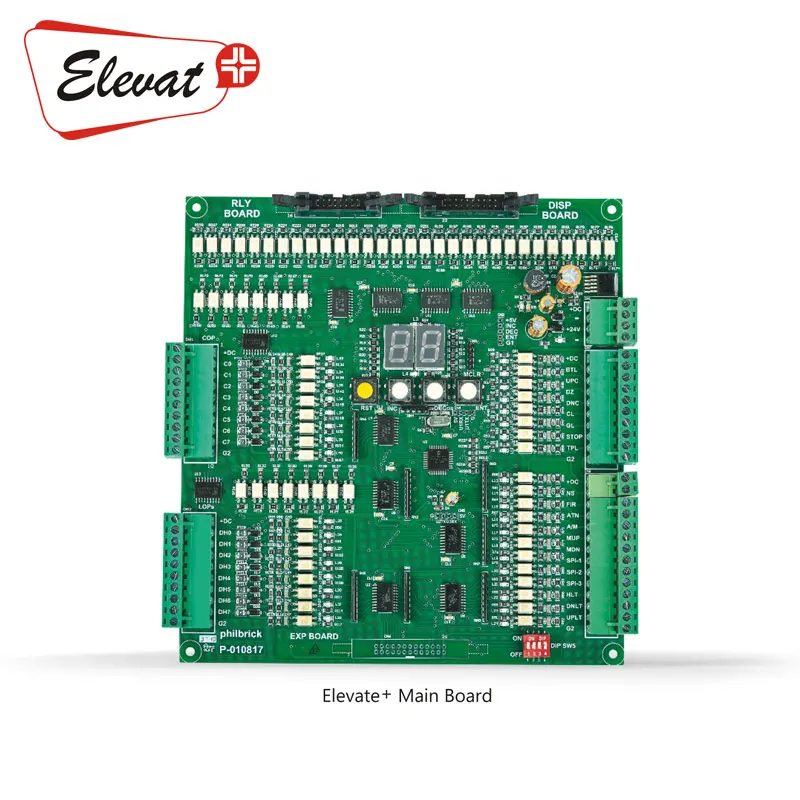

Salient Features
- RISC microprocessor-based High Speed clocked design which enhances the processing speed for better elevator control.
- Multi Functional keypad with 2 digits LED segment display.
- Programmable configuration & Functionality makes flexible controlling.
- Programmable, Floor Designation like B,P,C,L-1,-2, etc, Fireman floor etc.
- DIP switch settable number of floors.
- Non Stop Functionality.
- Auto FAN/LIGHT functionality to save energy.
- Intelligent electronics STOP function.
- Auto / Attendant Mode.
- Supports simple Gate Lock & Pre Gate Lock (OTIS type lock) configuration.
- Audio Buzzer O/P for Open Door condition in Manual Door.
- Call Buzzer O/P for Landing Floor Call prompting.
- Opto Coupler based Galvanic Isolation for all Inputs & Outputs.
- Separate LED Indication for all Inputs & Outputs.
- Hardware & Digital Filtering in all the input to suppress effects of Electrical Noise.
- PTC protected all the Digital I/O to avoid failure due to field faults.
- Solid State Display Driver with Resettable Fuse protection.
- Faster learning & simple maintenance.
Models and specifications
Manual Door Control Panels With V3F Drive
| Application | Model | Description | Options |
|---|---|---|---|

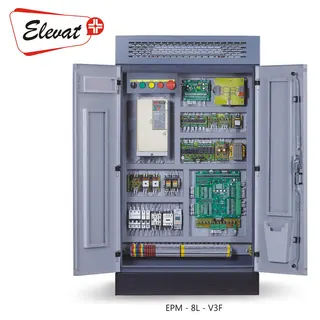

| Elevat + Main Board Based V3F Type Control Panel | EPM-8L-V3F | Landing Floors Down Collective Logic |
|
| EPM-12L-V3F | 12 Landing Floors Down Collective Logic | ||
| Xpert Main Board Based V3F type Control Panel | XPLM-8L-V3F | 8 Landing Floors Full Collective Logic | |
| XPLM-12L-V3F | 12 Landing Floors Down Collective Logic | ||
| XPLM-16L-V3F | 16 Landing Floors Full Collective Logic |
Single Speed Manual Door Control Panels
| Application | Model | Description | Options |
|---|---|---|---|
| Elevat + Main Board Based Single Speed Control Panel | EPM-8L-DOL | 8 Landing Floors Down Collective Logic |
|
| EPM-12L-DOL | 12 Landing Floors Down Collective Logic | ||
| Xpert Main Board Based Single Speed Control Panel | XPLM-8L-DOL | 8 Landing Floors Full Collective Logic | |
| XPLM-12L-DOL | 12 Landing Floors Down Collective Logic | ||
| XPLM-16L-DOL | 16 Landing Floors Full Collective Logic |
