Parallel Type Controller

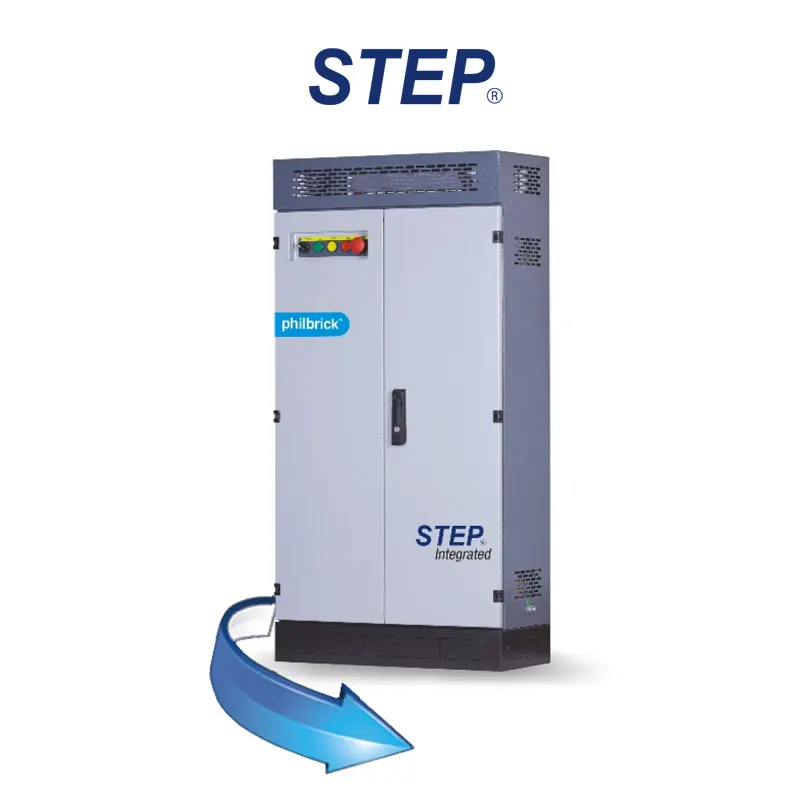

AS360 Based Integrated Control Panel Available in Configurations Up to 12 Landings with Down Collective and Full Collective Logic. Options include customized MRL enclosure, Pre Door opening, Duplex Control, Analog Weighing Device Interface and Double Door Function.
Salient Features
- Perfect Integration of Control Logic and V3F Drive of elevator leads to compact structure, less wiring, high reliability, easy operation and cost-efficiency.
- Double 32-bit MCU combines the elevator control and motor control.
- Full featured LCD Keyboard tool for programming & Debugging.
- Direct to Floor Landing Give jerkless starting & stopping.
- Redundant safety design, Double safety protection for control & Drive.
- All parallel input and output.
- Support speed 2.5 m/s.
- Support one main contactor solution.
- Support Geared (Asynchronous) and Gearless (Synchronous) motor.
- Sin /Cos. Endat, ABZ Incremental Resolver Interface.
- Support Auto Door & Manual Door Lift Logic.
- Use PIM Module Hardware, lower loss in switch on & off and longer lifetime.
- Creative zero speed torque compensation technology provides the elevators with good starting ride quality without installing weighing devices.
- New PWM dead-zone compensation technology brings less energy loss.
- Dynamic PWM carrier modulation technology brings less motor noise.
Models and specifications
| Application | Model | Description | Options |
|---|---|---|---|

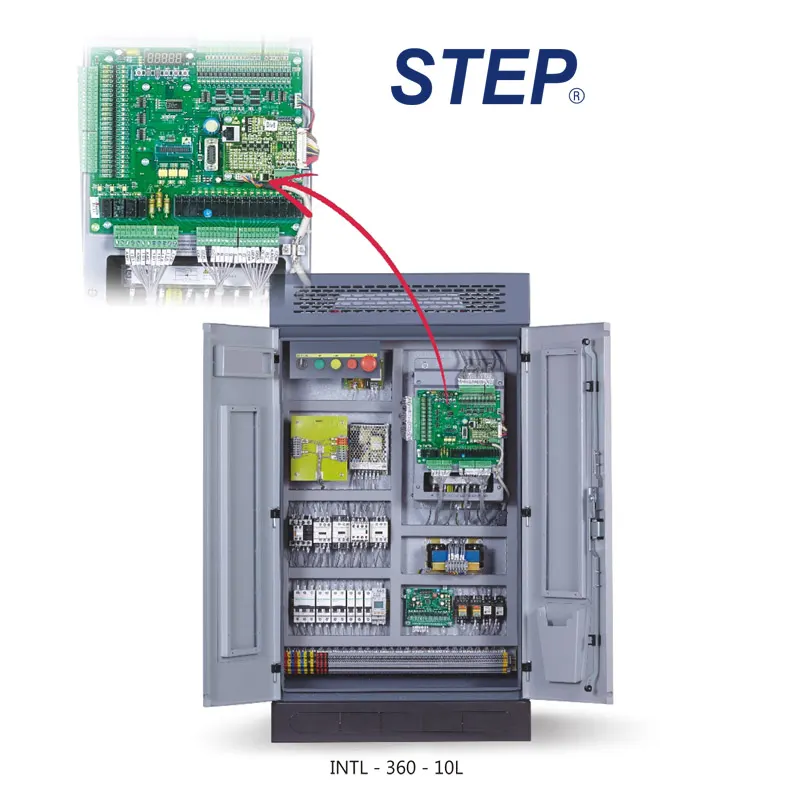

| AS360 Based Integrated Control Panel | INTL-360-10L | 10 Landing Down Collective / 7 Landing Full Collective |
|
| INTL-360-12L | 12 Landing Down Collective / 9 Landing Full Collective |
