Serial Can Bus Type Controller

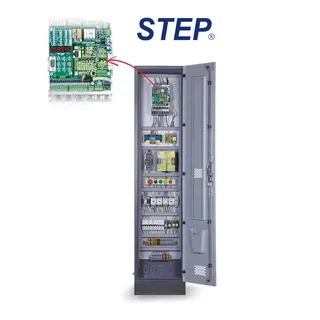

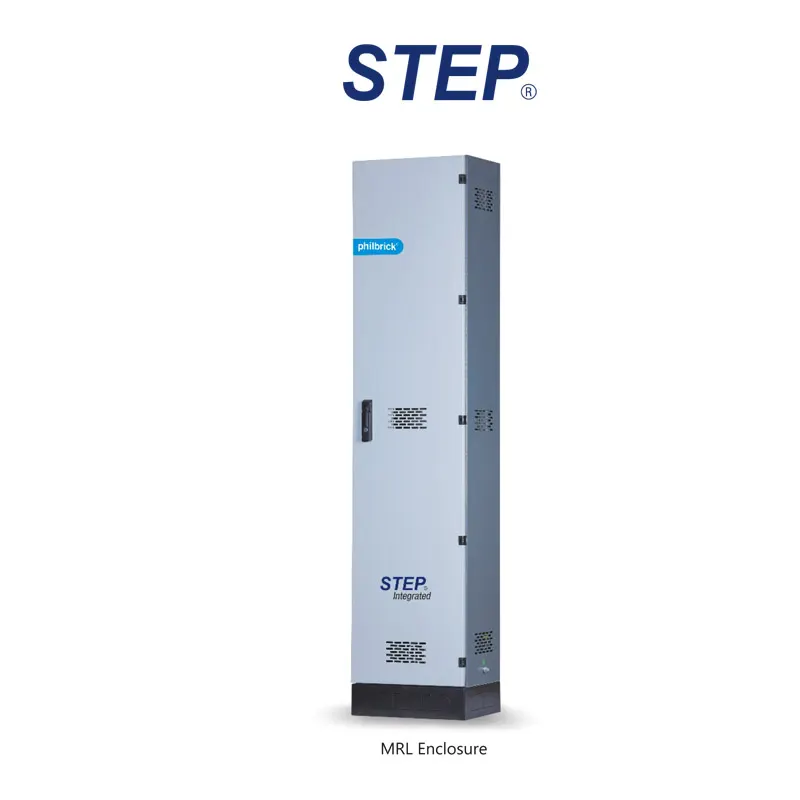

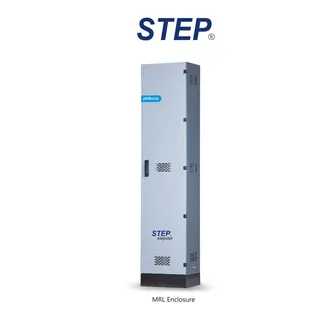

AS380 based Integrated Control Panel with 64 Landing Full Collective, also supplied in a customized enclosure for MRL application. Options include Pre Door opening, Group/Duplex Control, Double Door Function, DDS (Destination Dispatching System), IoT for remote monitoring and Community Monitoring System.
Salient Features
- Perfect integration for Control Logic & V3F drive of elevator leads to compact structure, few wiring, high reliability, easy operation & cost efficiency.
- Double 32-bit MCU combines the elevator control and motor control
- Direct to Floor Landing Give jerkless starting & stopping
- Full featured LCD Keyboard tool for programming & Debugging
- Analog Weighing Device Interface.
- Redundant safety design, Double safety protection for control & Drive.
- CAN Bus communication for COP, LOP & other accessories make the whole system rugged, easy, fast & reliable.
- Support speed 4.0 m/s.
- Support traditional Group control and DDS Destination Dispatching System control & IOT.
- LIFT Debugging from COP by connecting programming tool in COP Board.
- Support one main Contactor solution.
- Support Geared (Asynchronous) and Gearless (Synchronous) motor.
- Sin /Cos. Endat, ABZ Incremental Resolver Interface.
- Support Auto Door & Manual Door Lift Logic.
- Use PIM module, lower loss in switch on and off and longer lifetime.
- Creative zero speed torque compensation technology provides the elevators with good starting ride quality without installing weighing devices.
- Close loop vector brings higher performance in control.
- New PWM dead-zone compensation technology brings less energy loss.
- Dynamic PWM carrier modulation technology brings less motor noise.
Models and specifications
| Application | Model | Description | Options |
|---|---|---|---|
| AS380 Based Integrated Control Panel | INTL-380-64L | 64 Landing Full Collective |
|
