Semi Serial Type Controller

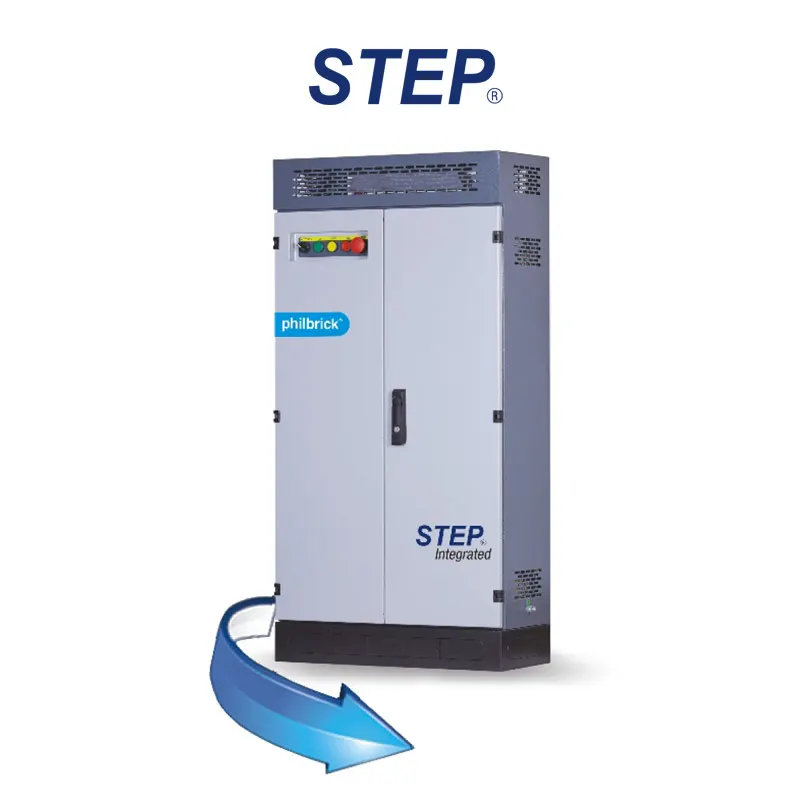

Integrated Control Panel that carries the car and landing signalling over a serial link while the rest of the system stays parallel wired, a middle path between the Parallel and Serial CAN Bus architectures.
Salient Features
- Perfect Integration of Control Logic and V3F Drive of elevator leads to compact structure, less wiring, high reliability, easy operation and cost-efficiency.
- Double 32-bit MCU combines the elevator control and motor control.
- Full featured LCD Keyboard tool for programming & Debugging.
- Direct to Floor Landing Give jerkless starting & stopping.
- Redundant safety design, Double safety protection for control & Drive.
- All parallel input and output.
- Support speed 2.5 m/s.
- Support one main contactor solution.
- Support Geared (Asynchronous) and Gearless (Synchronous) motor.
- Sin /Cos. Endat, ABZ Incremental Resolver Interface.
- Support Auto Door & Manual Door Lift Logic.
- Use PIM Module Hardware, lower loss in switch on & off and longer lifetime.
- Creative zero speed torque compensation technology provides the elevators with good starting ride quality without installing weighing devices.
- New PWM dead-zone compensation technology brings less energy loss.
- Dynamic PWM carrier modulation technology brings less motor noise.
Models and specifications
| Application | Model | Description | Options |
|---|---|---|---|

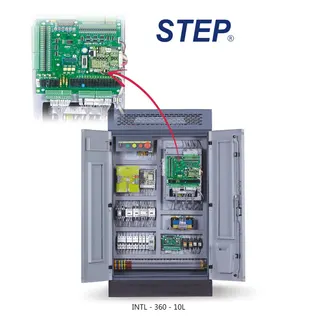

| AS360 Based Integrated Control Panel | INTL-360-10L | 10 Landing Down Collective / 7 Landing Full Collective |
|
| INTL-360-12L | 12 Landing Down Collective / 9 Landing Full Collective |
